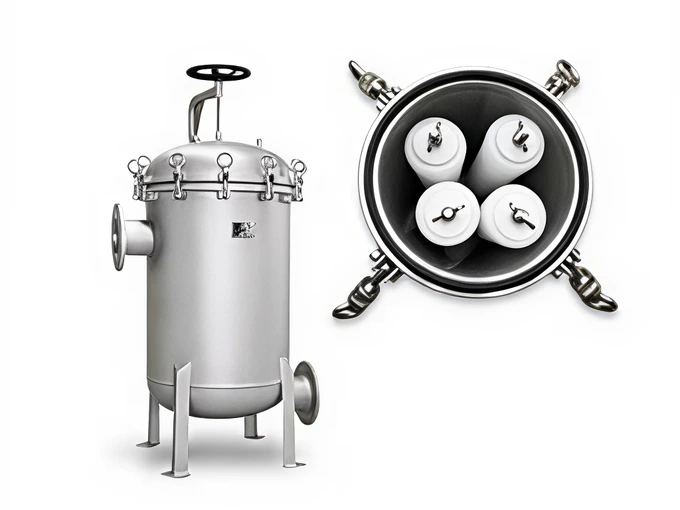

High Flow Stainless Steel Filter Element with Silicone/ EPDM/ NBR/ FKM Seals – LF5000

MF membrane system features large flow filter elements, stainless steel, and gaskets/seal rings (silicone rubber, EPDM, nitrile rubber, fluororubber). Its high flow design cuts element use, saving space and costs.

Hot-melt polypropylene prevents particle release; inside-out structure eases replacement, trapping pollutants internally. Pressure-driven, it removes impurities, sediments, suspended matter, bacteria—ideal for industrial pretreatment filtration.

Inquiry

Write a Review

Our advantage

Composition: Large flow filter element, stainless steel, gasket/seal ring, silicone rubber, EPDM, nitrile rubber, fluororubber.

High flow

Large flow filter element, using fewer filter elements, saving floor space, reducing labor and operating costs.

Material

Hot-melt bonded polypropylene material can prevent particle release and unloading, which is different from ordinary wire wound filter elements.

High Flow Stainless Steel Filter Element with Silicone/ EPDM/ NBR/ FKM Seals – LF5000 4

Structural advantages

The inside-out structure of the filter element makes it easy to replace the filter element while keeping the pollutants trapped inside the filter element.

Product Application

Application Principle

Under the action of pressure, the original liquid passes through the filter element, the filter residue remains on the filter material wall, and the filtrate flows out through the filter element, which can effectively remove impurities, sediments, suspended matter and bacteria in the water, thereby achieving the purpose of filtration.

Application Scenario

It is widely used in pretreatment and filtration in various industries, and can effectively remove impurities, sediments, suspended matter and bacteria in water, thereby achieving the purpose of filtration.

Product Specifications

Model	Standard meltblown filter element model	Inlet and outlet pipe diameter	Specification	Wall thickness	Structural form	Number of filter elements	Filter element size	flow t/h	Material
LFB-1-5X	LFB-15X	DN25	Φ219x700	2	Flange	5	10	1.5	Carbon steel/304 stainless steel
LFB-2-5X	LFB-25X	DN32	Φ219x1000	2	Flange	5	20	3
LFB-3-5X	LFB-35X	DN40	Φ219x1200	2	Flange	5	30	5
LFB-4-5X	LFB-45X	DN50	Φ219x1500	2	Flange	5	40	7
LFB-4-10X	LFB-410X	DN65	Φ325x1550	2.5	Flange	10	40	15
LFB-4-15X	LFB-415X	DN80	Φ377x1600	3	Flange	15	40	22
LFB-4-20X	LFB-420X	DN80	Φ426x1650	3	Flange	20	40	30
LFB-4-25X	LFB-425X	DN100	Φ450x1700	3	Flange	25	40	40
LFB-4-30X	LFB-430X	DN100	Φ500x1750	3	Flange + boom	30	40	45
LFB-4-35X	LFB-435X	DN100	Φ550x1800	3	Flange + boom	35	40	55
LFB-4-45X	LFB-445X	DN125	Φ600x1850	3	Flange + boom	55	40	85
LFB-4-50X	LFB-450X	DN125	Φ650x1900	3	Flange + boom	61	40	90
LFB-4-60X	LFB-460X	DN125	Φ700x1950	3	Flange + boom	73	40	110
LFB-4-65X	LFB-465X	DN150	Φ750x2000	4	Flange + boom	85	40	125
LFB-4-80X	LFB-480X	DN150	Φ900x2100	5	Flange + boom	121	40	180
LFB-4-100X	LFB-4100X	DN200	Φ1000x2150	5	Flange + boom	131	40	195
